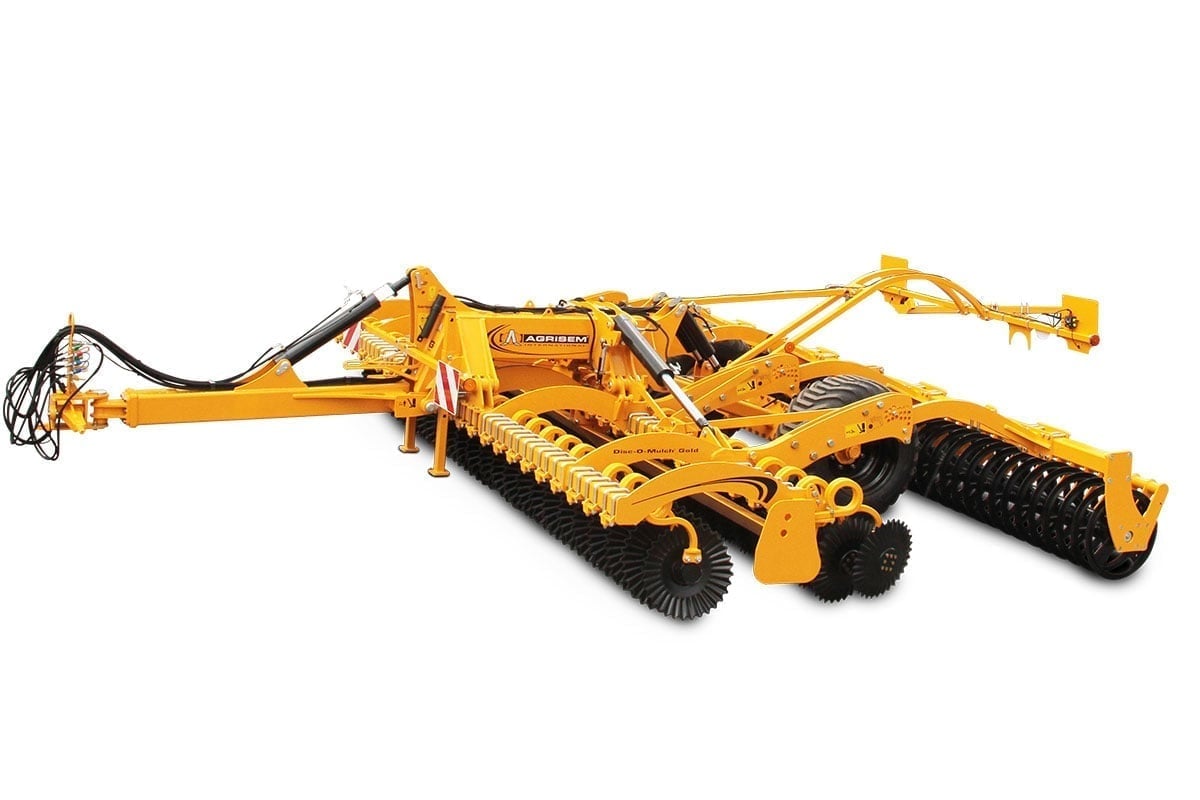

Agrisem Disc-O-Mulch Gold
Disc-O-Mulch 10 and 12 m are Agrisem’s largest independent disc stubble-breaker.
With there 10 and 12 meters large, they are made up of 2 folding elements of respectivly 5 and 6 meters each.
It brings together the strength and the technique of the Disc-O-Mulch Gold, in order to answer to the needs of the biggest farmings.
The new Extra model is fitted with less discs and the distance between rows of discs is more important to work in presence of residue.
300 - 1200 см working width
120 - 600 к.с. power required
24-96 бр/560-610 мм number/diameter of discs
2 134 - 15 700 кг weight
Specifications
|
Rigid models |
Foldable, models | |||||
| Working width (m) | 3,00 | 3,50 | 4,00 | 4,00 | 4,50 | 5,00 |
| Transport width (m) (with side disc) | 3,17 | 3,67 | 4,17 | 2,95 | 2,95 | 2,95 |
| Transport width (m) (with folding side disc) | 3,00 | 3,50 | 4,00 | 3,00 | 3,00 | 3,00 |
| Weight without clod breaking board, with cage roller and SR hubs (kg) | 2 134 | 2 304 | 2 618 | 3 146 | 3 593 | 3 853 |
| Power min-max required | 75-130 | 90-160 | 110-180 | 110-180 | 130-200 | 150-220 |
| Number of discs | 24+1 | 28+1 | 32+1 | 32+1 | 36+1 | 40+1 |
