Lemken COMPACT-SOLITAIR 9 Z

Finely tuned tillage intensity

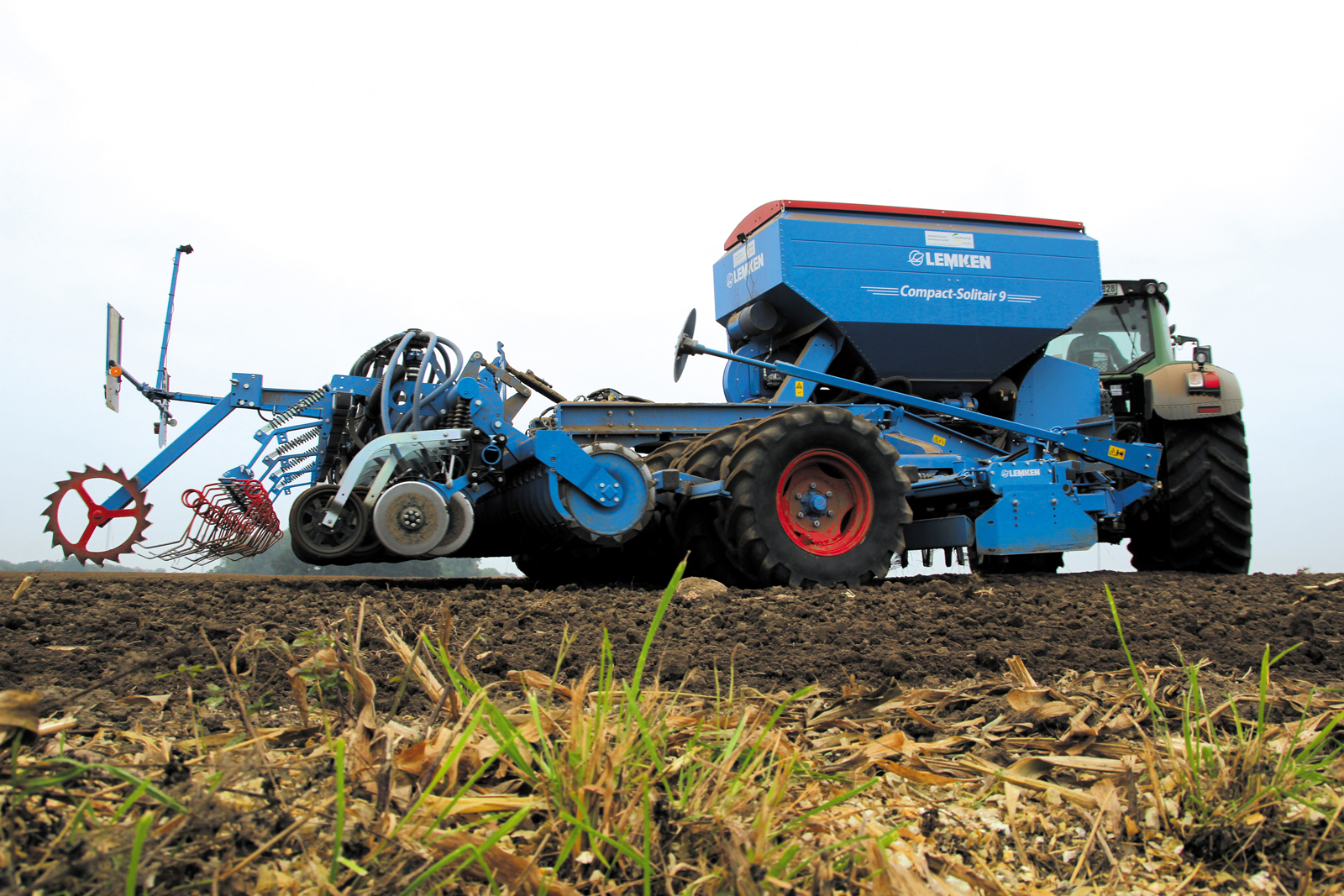

The Compact-Solitair 9 KK and 9 Z seeding combination with the Zirkon 12 rotary harrow is the first choice for high-performance sowing even under the most challenging conditions.
The decisive parameters including working depth, rotor speed, tine position and forward travel speed can all be set individually to achieve optimal soil cultivation.
The Zirkon 12 rotary harrow guarantees optimal seedbed preparation in virtually any soil conditions and with both conventional and conservation tillage.
The tyre packer roller ensures that the working depth of the rotary harrow is precisely maintained and accurately follows the soil contour.
The standardised three-point linkage interface allows the coulter bar to be detached and a maize planter to be attached. The versatile applications of this drill combination in both cereal and maize cultivation ensure that it can be universally utilised.
Available with 3 and 4 metres working width (9 Z) and 6 metres working width (9 KK).

комбинирана type

18 - 32 rows

300 - 400 см working width

125 - 167 мм inter-row distance

3500 л seed hopper volume

120 - 240 к.с. power required

3572 - 4231 кг weight

Highlights Details Models Specifications Gallery
Inquiry

Highlights

Perfect levelling

The depth of the rotary harrow is adjusted mechanically or optionally hydraulically with continuous variability. Hydraulic lift of the power harrow via parallelogram Wheelmark eradicators and lateral feed discs can be used to level surfaces in front of the power harrow

Large fertiliser hopper

The generously dimensioned seed hopper in the Compact-Solitair serves as fertiliser tank when using the implement for precision seeding. The maize pack also comprises a metering system that is suitable for fertiliser and an additional hydraulic supply for the single-seed drill. An additional harrow at the coupling frame provides for optimum levelling behind the tyre packer.

Details

For sustainable increases in acreage performance

The working parameters of the LEMKEN Zirkon power harrow can be flexibly adjusted to ensure optimum seedbed preparation. • Whether seedbeds are to be prepared rapidly and extensively at shallow depths or more deeply and intensively: working parameters such as working depth, rotor speed, tine position and forward travel speed can be individually adjusted to ensure optimum soil cultivation.

Soil cultivation with a power harrow

The 3, 4 or 6 metre-wide Compact-Solitair drill combination can be equipped with a Zirkon power harrow for effective seeding even under extremely challenging conditions. The power harrow shows its full strengths in both conventional and conservation tillage. Active soil cultivation for a wide range of applications in easy to difficult soil conditions. Power harrows offer advantages in variable soil conditions.

Models

300 Z 125
  • type пневматична
  • rows 24
  • working width 300 см
  • inter-row distance 125 мм
  • seed hopper volume 3500 л
  • power required 120 - 200 к.с.
  • weight 3644 кг
400 Z 125
  • type пневматична
  • rows 32
  • working width 400 см
  • inter-row distance 125 мм
  • seed hopper volume 3500 л
  • power required 140 - 240 к.с.
  • weight 4231 кг
300 Z 167
  • type пневматична
  • rows 18
  • working width 300 см
  • inter-row distance 167 мм
  • seed hopper volume 3500 л
  • power required 120 - 200 к.с.
  • weight 3572 кг
400 Z 167
  • type пневматична
  • rows 24
  • working width 400 см
  • inter-row distance 167 мм
  • seed hopper volume 3500 л
  • power required 140 - 240 к.с.
  • weight 4135 кг

Specifications

COMPACT-SOLITAIR 9 Z
Compact-Solitair 9/300 Z 125 Compact-Solitair 9/400 Z 125 Compact-Solitair 9/300 Z 167 Compact-Solitair 9/400 Z 167
Weight (kg) 3644 4231 3572 4135
Seeding coulter 24 32 18 24
Hopper capacity (l) 3500 3500 3500 3500
Row distance (mm) 125 125 167 167
